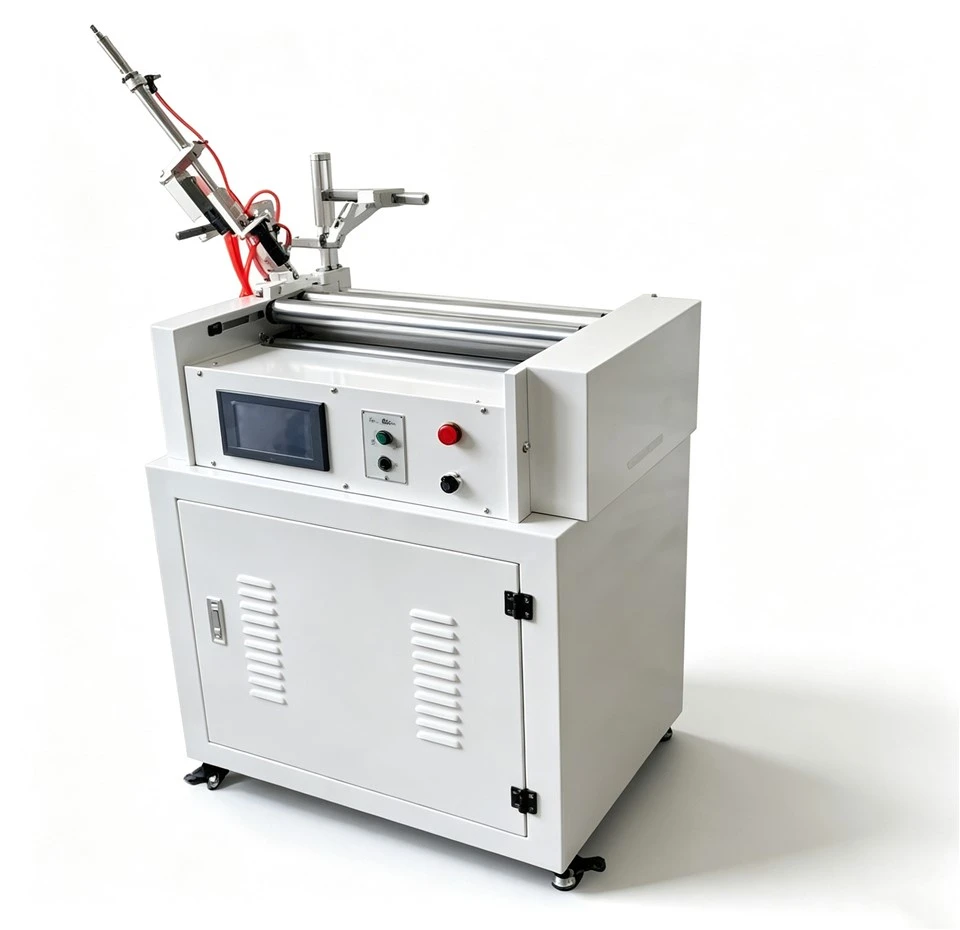

FTJ- 150 Paper Tube Edge Gluing Machine

The FTJ-150 Paper Tube Edge Gluing Machine stands as a technologically advanced and indispensable solution for automating the crucial process of applying precise quantities of adhesive to the edges of paper tubes. Engineered specifically for high-volume industrial production environments, this machine significantly enhances efficiency, ensures consistent quality, and reduces operator fatigue, leading directly to substantial improvements in production output and cost-effectiveness.

The primary function of the FTJ-150 is to accurately and reliably dispense adhesive onto one or both edges of paper tubes as they are conveyed through the machine. This pre-gluing step is essential for strong and seamless seams when the tube blanks are later formed into the final tube shape. By automating this critical process, the FTJ-150 delivers consistency that is simply unattainable with manual methods, directly contributing to the structural integrity and reliability of the finished tubes used in various packaging and industrial applications. It operates as a vital component within larger fully or semi-automated tube forming lines.

1. Programmable High-Stroke Applicator: The heart of the machine is its robust automatic glue-applying mechanism. It features a significantly high travel stroke, enabling thorough and uniform application of adhesive over both the length and width of the tube edge. The powerful reciprocating motion ensures glue penetrates the paper fibers effectively. The stroke height is adjustable and precisely controlled by the PLC system.
2. Precise Glue Volume Control: Advanced electronic proportional control governs the glue dispensing speed and volume, eliminating inconsistencies like heavy puddling or spotty misses common in manual work. The amount of glue applied is meticulously regulated based on real-time production parameters.
3. Stable & Accurate Tube Positioning: Equipped with a high-precision positioning clamp driven by a servo motor and high-quality ball screw, the FTJ-150 guarantees exceptional positional stability of the tube edges during gluing. This prevents misalignment that could lead to inadequate adhesion or adhesive wastage.
4. Powerful & Adjustable Vacuum System: A specially designed, strong vacuum system with exact pressure parameters facilitates the quick and secure alignment and clamping of tubes onto the mandrel frame prior to gluing. This ensures the tube remains firmly fixed for consistent application, allowing the system to perfectly match diverse tube dimensions and resist subtle vibrations.
5. Efficient Production Cycles: Optimized mechanics significantly reduce the time needed for positioning, clamping, and gluing each tube. Ideal cycle times (once tubes are loaded) are measured in seconds, enabling consistently high throughput even during extensive production runs.
6. Energy Efficiency & Safety: Designed with operational cost savings in mind, the machine features low energy consumption. Built-in safety measures, including emergency stop controls and protective guarding, prioritize operator safety during operation and maintenance. Adhering to established safety protocols during use is crucial to mitigate potential risks.

Use in paper tube and dispensing less products.

1. Simple and easy to operate;
2. Automatic adhesive injectingHigh speed , High precision and good repeatability
