Performance&Characteristics

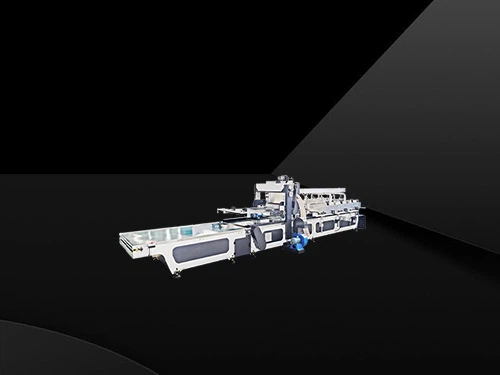

The Automatic Partition Assembly Machine is specially designed to enhance the efficiency and accuracy of assembling various carton partitions and barriers.
Equipped with a sophisticated PLC (Programmable Logic Controller) and an intuitive human-machine interface (HMI), the machine offers user-friendly operation, making it easy for operators to set up and monitor the assembly process.
the machine's versatility allows it to handle a wide range of partition types, making it an ideal solution for packaging lines aiming to boost productivity while maintaining excellent product integrity.
Application And VIDEO
Products Description
Automatic Partition Assembly Machine is feed paper vertically and horizontally at the same time for criss-crossinsertion.
Dual station paper output,double efficiency.
Each air-consuming equipment takes air from the main air pipe and iscontrolled independently without affecting each other.
Technology parameter
|
Model |
FG43L |
FG63L |
|
Horizontal inserting width:A |
80~900mm |
80~900mm |
|
Lengthways sheets length:B |
210~450mm |
210~600mm |
|
Clapboard Height:C |
70~300mm |
70~300mm |
|
Horizontal clapboard distance:D |
45~850 |
45~850 |
| Lengthways clapboard distance:E |
≥board thickness |
≥board thickness |
| Carton inserting mouth width:F |
1~6 |
1~6 |
